Zhengzhou shanghe electronic technology co. LTD

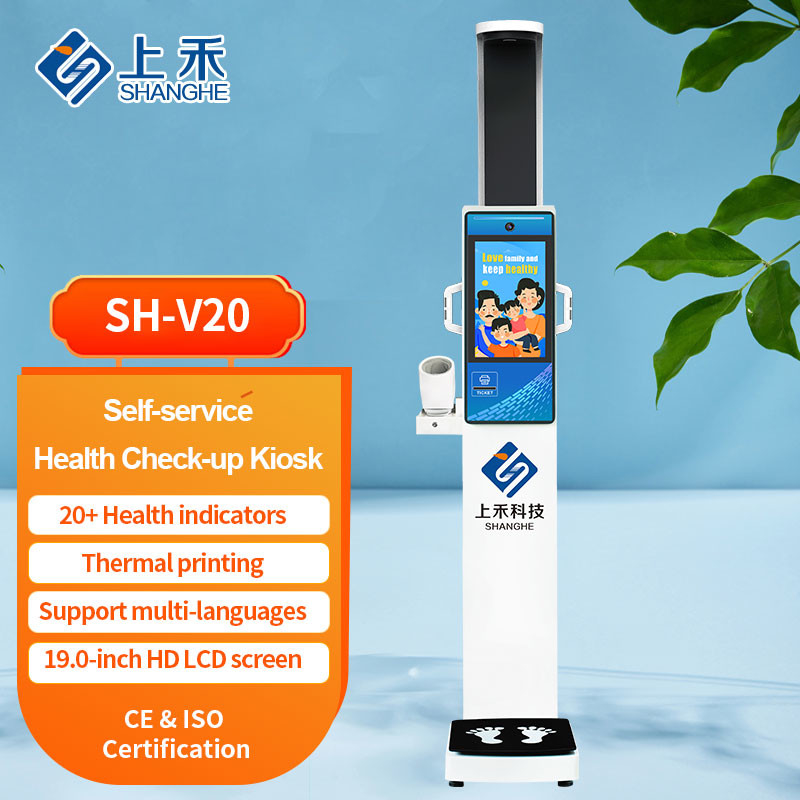

SH-V20 Automatic Blood Pressure Monitoring Machine

Подробная информация о продукте:
Место происхождения: Хенань, Китай
Фирменное наименование: SHANGHE
Сертификация: CE/ISO13485/OMIL
Номер модели: Грузить и регуляция - V20
Документ: SH-V20.pdf
Оплата и доставка Условия:
Количество мин заказа: 1 набор
Цена: 1614usd
Упаковывая детали: 180*49*22cm (20kg) 68*49*40cm (25kg); 0.33CBM
Время доставки: 5-15 рабочих дней
Условия оплаты: L/C, D/A, D/P, T/T, Western Union, Moneygram
Поставка способности: 6000 комплектов в месяц
  • Подробная информация
  • Характер продукции

Подробная информация

Название продукта: Автоматический аппарат для измерения артериального давления SH-V20 Ключевое слово: Машина кровяного давления
Материал: Шкаф металла Измерение жира: Диапазон измерений: жир:5.0- 75%; базальный метаболизм:385 ккал- 5000 ккал;
Артериальное давление: 0-299 мм рт.ст. (0 кПа - 39.9 кПа); Диапазон пульса: 40-180 ударов/мин Напряжение питания: AC160V-250V, 50HZ
Передача данных: Стандарт: RS232, Wi-Fi; необязательно: Bluetooth, 3G/4G, RJ45 Языки: Поддерживает 17 языков, включая английский, можно свободно переключать языки
Индивидуально: Язык/Логотип/Наклейка/Цвет Измерение: 585*575*2350 мм

Характер продукции

SH-V20 Automatic Blood Pressure Monitoring Machine


Product Specifications:

Model
SH-V20
Measurement Items
Height, Weight, BMI, Blood Pressure, Heart Rate,Body fat analyzer

Height Measurement

Measure range: 20-205cm  accuracy: ±0.5cm
ultrasonic probe

Weight Measurement

Measure range: 5-500kg    accuracy: ±0.1kg
precise balanced sendor

Panasonic Blood Pressure
Measure range: 0-299mmhg(0-39.9kpa) ; 40-180 heartbeat/minute
Measure accuracy: ±4mmHg;

Fat Measurement
Measure range: Fat:5.0- 75% ; Basal metabolism:385kcal- 5000kcal;
Electrode method:Four electrodes, eight electrodes(optional)
Display Mode
19.0 inch LCD screen,
(Display date temperature in real time ,Play advertising video)
Print
Thermal automatic printing
Coin operated(Optional)
Intelligent multi-currency recognition
Power Supply Voltage
AC160v-250v,50HZ
Data Output Format
RS-232, Wifi, Bluetooth, 3G/4G,etc.
Identify(Optional)
QR code/barcode, Enter account/mobile number,IC/ID card, etc.
Overall dimension
585*575*2350mm /LWH(mm)
Packing Size
180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM



Product Description:

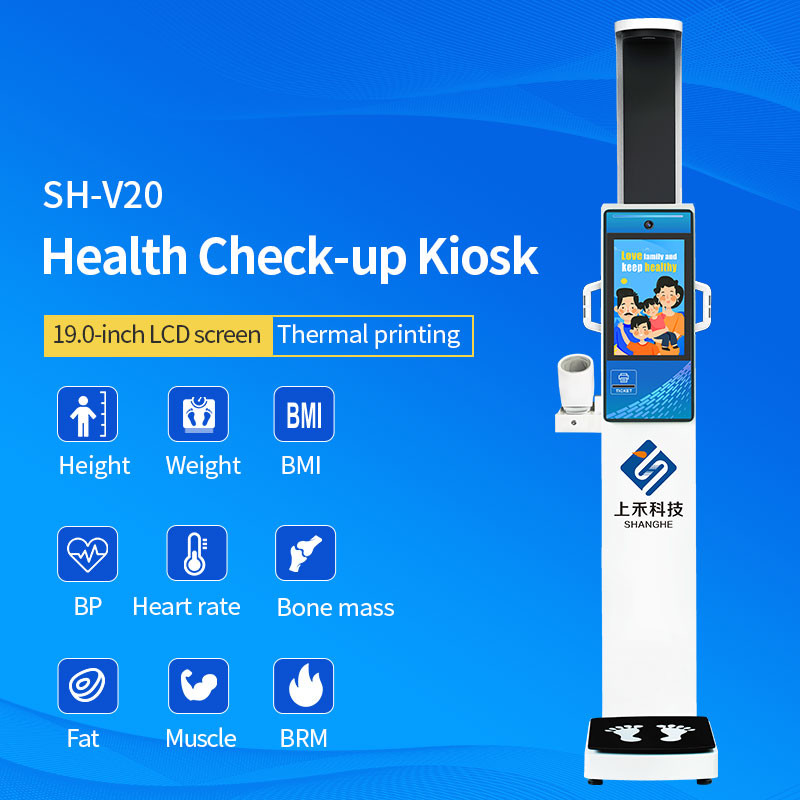

SH-V20 Health Checkup Machine Functions:

1.The main function is height, weight, BMI, body fat, blood pressure&pulse, thermal printer.

2.19-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.

3.Optional: coin operated payment function helping customers make profits.

4.AI robot guides operation, automatic voice broadcast measurement results.

5.Ultrasonic/Millimeter wave technology to measure height (non-touch).

6.Precision balanced beam resistive strain sensor.

7.Supports 17 languages including English, can switch languages freely.

8.4-electrode human bioelectrical impedance; 8-electrode (optional) Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.

9.Intelligent pressurization technology, oscillometric measurement method

(supports left and right arm)

10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa);  Pulse range:40-180 beats/min.

11.Micro thermal printer automatic paper cutting, paper size: 50*57mm.

12.Three ways to get the report: thermal printerphone reportdownload report

13.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.


SH-V20 Automatic Blood Pressure Monitoring Machine 0

SH-V20 Automatic Blood Pressure Monitoring Machine 1

SH-V20 Automatic Blood Pressure Monitoring Machine 2


SH-V20 Automatic Blood Pressure Monitoring Machine 3


Certifications:

SH-V20 Automatic Blood Pressure Monitoring Machine 4

Hot Sale Products:

SH-V20 Automatic Blood Pressure Monitoring Machine 5

Our Advantages

1. Always making an all-over inspection of product before delivery and get archived .
2. We will keep serving you to do the best before-sale and after-sale service.
3. We provide user manual and instruction video for scale assembly.

4. The product is in a warranty of one year, and lifelong technical service.
5. We can provide customized software and hardware service to meet your different needs.
6. We will also timely instruct you how to assemble and operate through online call and video if you need.
